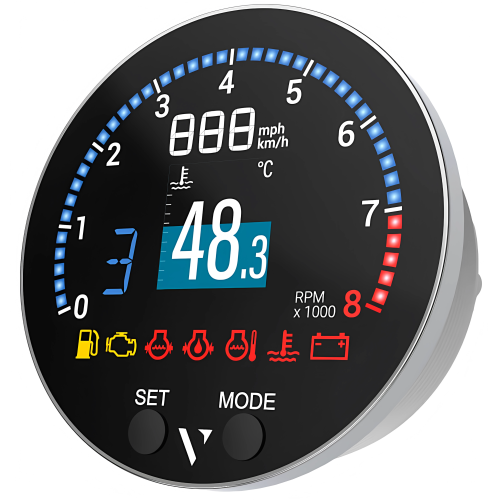

Veratron Multifunctional Display VMH 35 GPS 85 mm 12V

The Veratron VMH 35 GPS is a multifunction display designed to centralize engine, battery, and navigation information on board. Featuring a new-generation color TFT screen readable in direct sunlight, it offers a clear and intuitive display of essential boat data.

Particularly suited to boats equipped with outboard motors, it allows the display of a wide range of information such as engine speed, speed, tank levels, temperatures, engine pressures and electrical parameters.

The VMH 35 GPS incorporates a high-performance GNSS receiver capable of providing and redistributing position data over the NMEA 2000 network. It also has a dedicated port for IBS intelligent battery sensors for precise monitoring of onboard battery status.

Technical specifications:

• Type: Multifunction display for engine and navigation
• Model: VMH 35 GPS
• Display technology: Hybrid color TFT screen
• Outer diameter: 100 millimeters
• Recessed diameter: 85 millimeters
• Power supply: 9 to 16 V
• Network compatibility: NMEA 2000
• Integrated high-performance GNSS receiver
• IBS Smart Battery Sensor Port
• 1 programmable resistive analog input from 0 to 400 Ω
• 1 sensor input 0 to 5 V
• Integrated analog to NMEA 2000 gateway

Displayable data:

• Engine hours and clock
• GPS location
• Boat speed (SOG)
• Distance travelled
• Engine speed (RPM)
• Fuel level
• Freshwater level
• Wastewater level
• Fuel consumption
• Engine oil pressure and temperature
• Cooling circuit pressure and temperature
• Sea water temperature
• Tiller angle and reversing gear position
• Engine trim
• Depth
• Amperage
• Battery voltage
• Battery temperature
• Battery charge status

Product advantages:

Integrated GPS, high-visibility color screen and NMEA 2000 compatibility for complete boat monitoring.
Ideal for grouping engine, navigation and energy management data on a single compact display.
