Wema Level Sensor S3-E EU Standard 0-190 Ohm 200mm
S3-E EU Standard Level Sensor 0-190 Ohm 200mm Length Wema Marine 1'' 1/4 BSP Thread Mounting
Promotion in progress
-5% off for purchases of €1100 or more*: SB737MVB
from €150 of purchases**
AVAILABLE PAYMENT METHODS
100% SSL secure payment
Available everywhere in Europe
By message and telephone
Possible on request for quote
This is our priority

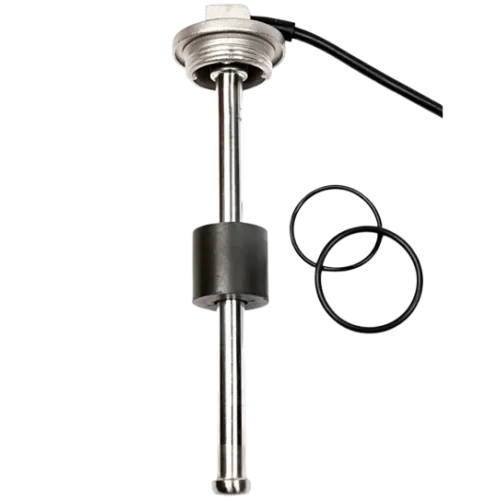

S3-E EU standard level sensor 0-190 Ohm 200mm length Wema Marine 1'' 1/4 BSP thread mounting.
In the WEMA system, electrical contacts placed inside a sealed tube are opened or closed by the passage of a magnetic float circulating on the tube.
There are no moving mechanical parts or electrical currents in the tank that could electrolytically attack the surrounding metal.
They are insulated from the ground and are suitable for aluminum boats.
S3 gauges are offered in fixed dimensions measured from the top of the thread. The free distance between the bottom of the tank and the bottom of the gauge increases the volume of the reserve.
- 30cm electric cable, 2 wires 0.75 mm².
- Electrical resistance 0 to 180 Ohm (European) or 240 - 30 Ohm (American).
- Nitrile O-ring sealing.
- Height of mounted gauge head: 21 mm.
- Operating temperature: -40°C to +70°C.
- Power supply: 12/24 V.
- Drilling: BSP R 1-1/4''.
- Sensor head outer diameter: 54 mm.
- Model
- EU Standard
- Matter
- Stainless steel
- Length
- 200 millimeters
- Built-in dimensions:
- R 1-1/4 pouces
- Brand
- Wema Marine
- EAN13
- 7025923260020
- Product
- Level sensors
- Manufacturer code
- Wema Marine 326002 (9137)
