Uniteck UNIFIX 800 EGF mounting bracket for Unisun
UNIFIX 800 EGF - for 2 panels up to 400W - multi-panel scalable (1600W = UNIFIX 800 EGF x2/ 2400W = UNIFIX 800 EGF x3...)
LIMITED-TIME SPECIAL OFFER
Promotion in progress
-5% off for purchases of €1100 or more*: SB737MVB
from €150 of purchases**
AVAILABLE PAYMENT METHODS
100% SSL secure payment
Available everywhere in Europe
By message and telephone
Possible on request for quote
This is our priority
UNIFIX 800 EGF - for 2 panels up to 400W - multi-panel scalable (1600W = UNIFIX 800 EGF x2/ 2400W = UNIFIX 800 EGF x3...)

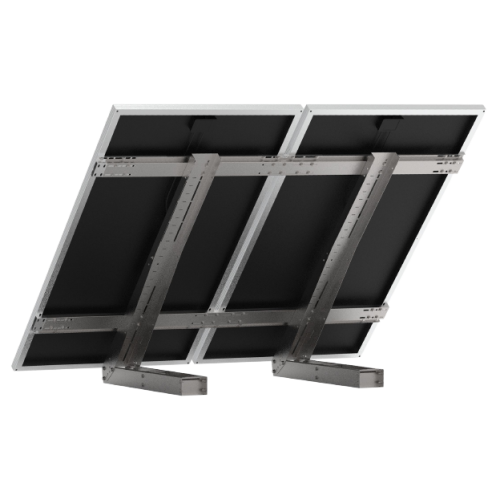

The Unifix 800 EGF bracket has been specially designed to fix your Unisun photovoltaic panels or equivalent of sizes between 808 and 1200mm wide and 1200 to 2300mm long.
Simple to install, Unifix 800 EGF is used on a rigid flat horizontal surface (eg: lawn, sand, concrete floor, wooden frame). Thanks to its galvanized steel structure and its adapted corrosion-resistant screws, it is perfectly suited for outdoor use.
It can either be:
- fixed to a concrete-type floor using 8 M8 studs (not supplied)
- ballasted using the ballast box for UNIFIX 800 EGF (optional)
- ballasted using the support for concrete slabs (optional)
Equipped with the multi-position tilting system, the Unifix support allows you to optimize your performance depending on the orientation chosen:
- alone: the adjustment angle is 10 to 60 degrees
- with ballast box option: the adjustment angle is 30 to 60 degrees
- with the concrete slab support: the adjustment angle is 20 to 60 degrees
Thanks to its innovative design, the UNIFIX 800 EGF bracket can be used to achieve a multi-panel installation.
Another option available: mono-panel extension for installation of an odd number of panels.
- Leisure support
- Multi-panels
- Compatible with all brands
- Weighting options available
- Range / Type
- Fixing brackets
- Brand
- Uniteck
- EAN13
- 3760233352105
- Product
- Solar accessories
- Manufacturer code
- Uniteck 2105 (3901)
