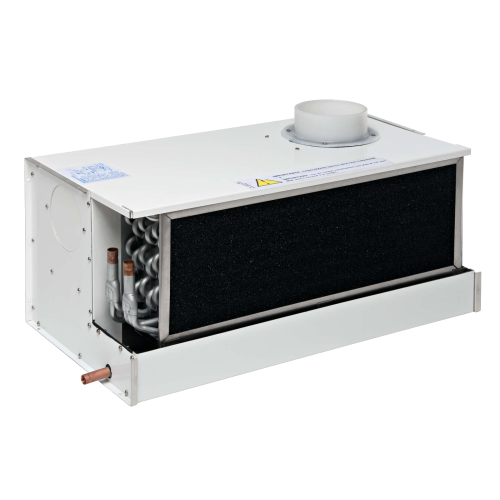

Frigomar Fan Coil Unit 20,000 BTU/h with Duct

The Frigomar 20,000 BTU/hour fan coil unit with ducting is a high-performance ducted model designed to provide efficient air conditioning while minimizing energy consumption. With an airflow of 725 m³ per hour and a power consumption of 200 W (0.88 A), it is ideal for air conditioning large cabins or multiple zones on board yachts.

Frigomar fan coil units can be installed outside the room to be cooled and connected via tubular ducts. With ducts up to 3 meters long, they ensure uniform air distribution and cooling capacity suitable for large yachts and multiple spaces.

The painted aluminum body ensures lightness, strength, and resistance to marine conditions. The air outlet can be oriented vertically or horizontally depending on the model chosen (please specify when ordering). Condensate is drained via a 14 mm tube, and the intake filter is removable and washable, facilitating maintenance and ensuring consistently clean air.

Frigomar fan coil units can be controlled by thermostats (optional) allowing the ideal temperature to be maintained in each zone to be air-conditioned, combining comfort and energy savings.

• Frigomar 20,000 BTU/hour ducted fan coil unit
• Airflow: 725 m³ per hour
• Power consumption: 200 W – 0.88 A
• Installation outside the room with tubular conduits up to 3 meters
• Painted aluminum bodywork, resistant to marine conditions
• Vertical or horizontal air outlet depending on the model
• Condensate drainage via 14 mm tube
• Removable and washable suction filter
• Control possible via thermostats (optional)
• Suitable for yachts and multiple cabins

The Frigomar 20,000 BTU/hour fan coil unit with ducting guarantees reliable, efficient and economical air conditioning, perfectly suited to large yachts and demanding marine environments.
